Infinity RS-4000 Rehab

I came across a pair of Infinity RS-4000 speakers at a garage sale. The foam surround on the midrange was gone and someone had previously replaced the woofers with MB Acoustics drivers. The cabinets and grills were in excellent condition but the reason I bought the pair was for the EMIT tweeters. And best of all the price was right - dirt cheap; a lot less than what the tweeters alone cost on the used market.

Despite my original intentions to just keep the tweeters, I took a peep at what it would take to restore the speakers to their original state. I found an old pair of original woofers in need of new foam on the well-known auction site. I then ordered some new foam surrounds for the mids and woofers, and dusts cap for the woofers and all of a sudden, I had a pair of near new RS-4000 speakers. As an added bonus, I sold those MB Acoustics woofers on the same auction site.

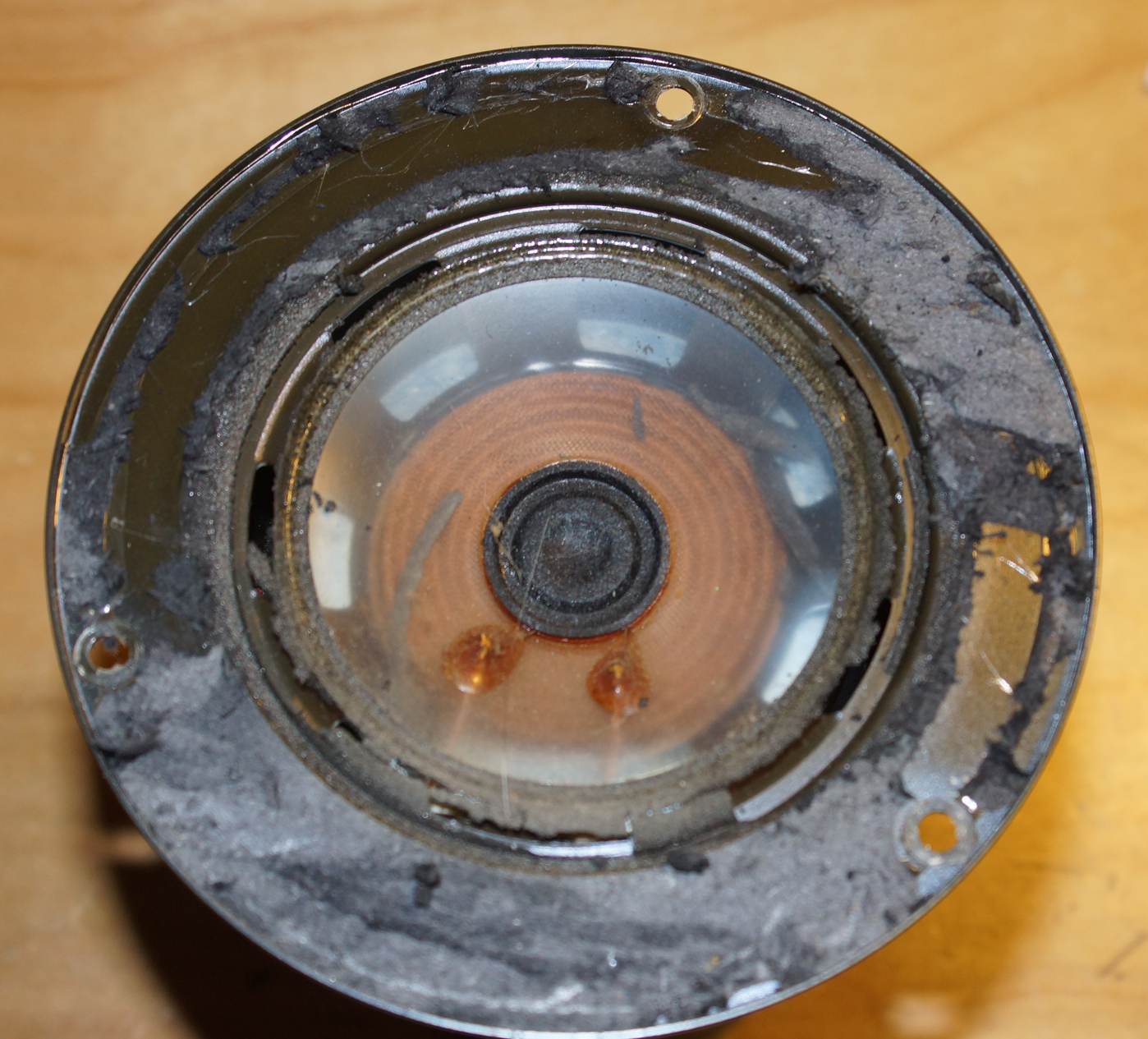

I didn't touch the crossovers nor the cabinets. Here are a few pictures along the way. The Infinity mids have a built-in closed back. The foam surrounds were gone. They looked dirty. Refoaming was a bit tricky - the closed back meant all access and repair had to be done from the front. It wasn't too bad.

Here's one of the speakers with a newly refurbished mid. The woofer is the MB Acoustics unit before I replaced it.

The used woofers I bought also needed new foam and dust cap. Here are before (left) and after (right) pictures of the drivers.

Here's what the end results look like. I like how they came out. The repair job wasn't too difficult nor costly. A nice garage sale find.
